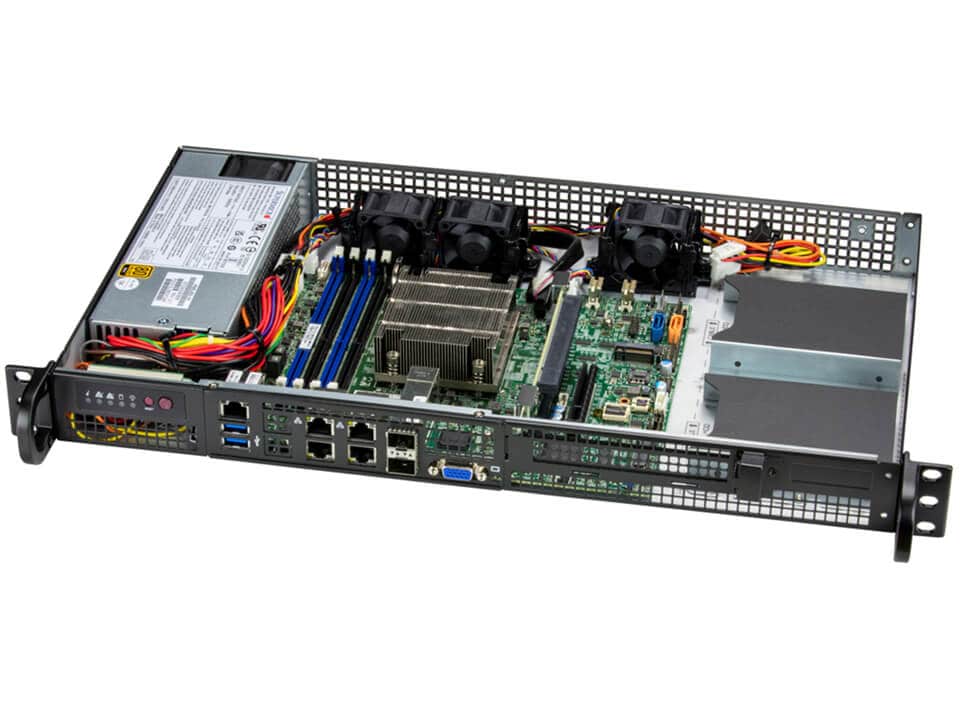

1U IoT SuperServer SYS-510D-4C-FN6P (SYS-510D-4C-FN6P)

SYS-510D-4C-FN6P | Mini-1U | SuperServer | Products | Supermicro - SYS-510D-4C-FN6P - SS510D-4C-FN6P - Mini-1U - IoT - X12 - System

Loading price... (€995.10)

Loading price...

Verzending binnen 14-21 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-510D-4C-FN6P

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Retail Application, Firewall, Gateway, uCPE

Key Features

Intel® Xeon® Processor D-1718T, CPU TDP 46W
Up to 256GB Registered ECC RDIMM, DDR4-2933MT/s, in 4 DIMM slots
4 GbE and Dual 25G SFP28
1 Internal 3.5" or 4 Internal 2.5" drive bays
3x 40x28mm 4-PIN PWM fans
200W Low-noise AC-DC power supply
1x VGA, 2 USB 3.0

...

Buy Now

Product SKUs
SuperServer SYS-510D-4C-FN6P

Motherboard
Super X12SDV-4C-SP6F

Processor
CPU	Single FCBGA-2227 Intel® Xeon® Processor D-1700 Series
Note	Supports up to 46W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	Intel® SoC
Network Connectivity	2 RJ45 1GBASE-T with Intel® I210 2 SFP28 25GbE with Intel® SoC 2 RJ45 1GBASE-T with Intel® I350-AM2 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 SFP28 25 GbE LAN port(s) (Intel® SOC) 2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2) 2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
USB	2 port(s)
Video	1 VGA port(s)

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
