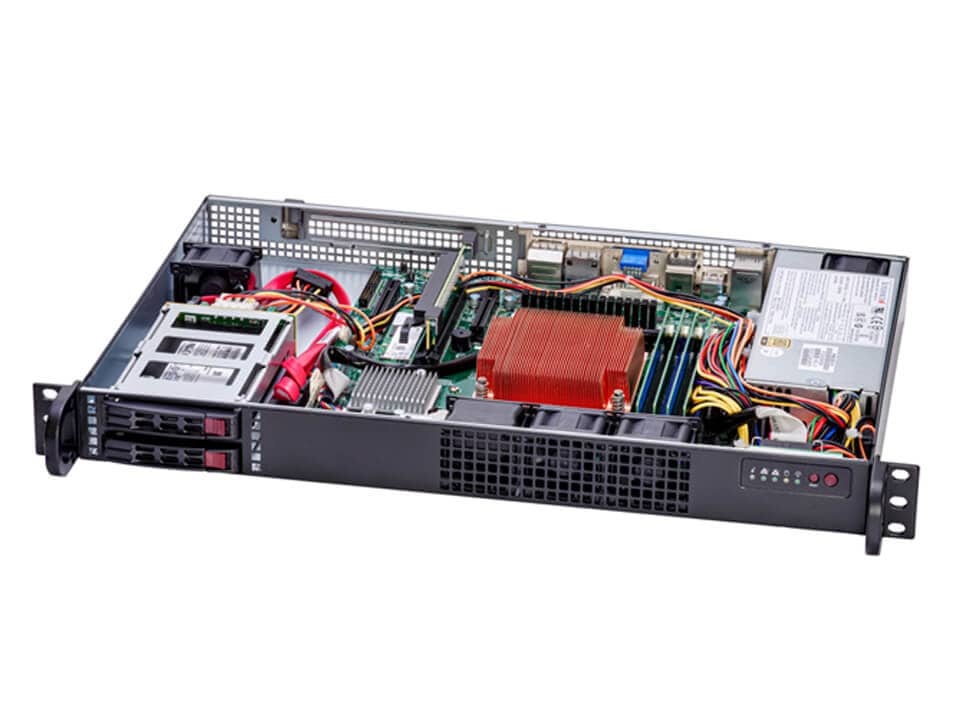

1U IoT SuperServer SYS-111AD-HN2 (SYS-111AD-HN2)

SYS-111AD-HN2 | 1U | SuperServer | Products | Supermicro - SYS-111AD-HN2 - SS111AD-HN2 - 1U - IoT - X13 - System

Loading price... (€826.39)

Loading price...

Verzending binnen 14-21 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-111AD-HN2

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Video Surveillance
Office Server, DVR/NVR
Digital Signage, POS
Compact 1U Embedded System

Key Features

Single Socket LGA-1700 support 12th & 13th Gen Core i9/i7/i5/i3/Pentium/Celeron Processor,up to 80W
4x DIMMs; Up to 128GB Unbuffered ECC/non-ECC UDIMM
1x PCIe Gen5 x16 HHHL slot
2 Hot-swap 2.5" SATA3 drive bays
4x 40x28mm 4-pin PWM fans
200W Low Noise AC-DC power supply with PFC
Rear-access I/O: 2x 2.5GBased-T, 1x Dedicated IPMI, 4x USB3.2, 1x VGA, 1x DVI-D, 2x DP,1x HDMI 2.0b

...

Get Pricing

Product SKUs
SuperServer SYS-111AD-HN2

Motherboard
Super X13SAZ-F

Processor
CPU	Single LGA-1700 12th/13th Gen Core i9/i7/i5/i3 Processor
Note	Supports up to 80W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® R680E
Network Connectivity	2 RJ45 2.5GbE with Intel® I225-LM View AOC Options

Input / Output
LAN	2 RJ45 2.5 GbE LAN port(s)
USB	4 port(s)
Video	1 VGA port(s) 1 HDMI 2.0b port(s) 1 DVI-D port(s) 2 DisplayPort 1.4 port(s)
Audio	Line Out Mic in

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates System Lockdown

PC Health Monitoring
Temperature	SuperDoctor® 5 System resource alert via SuperDoctor®5 Platform Environment Control Interface (PECI) 3.0 support
