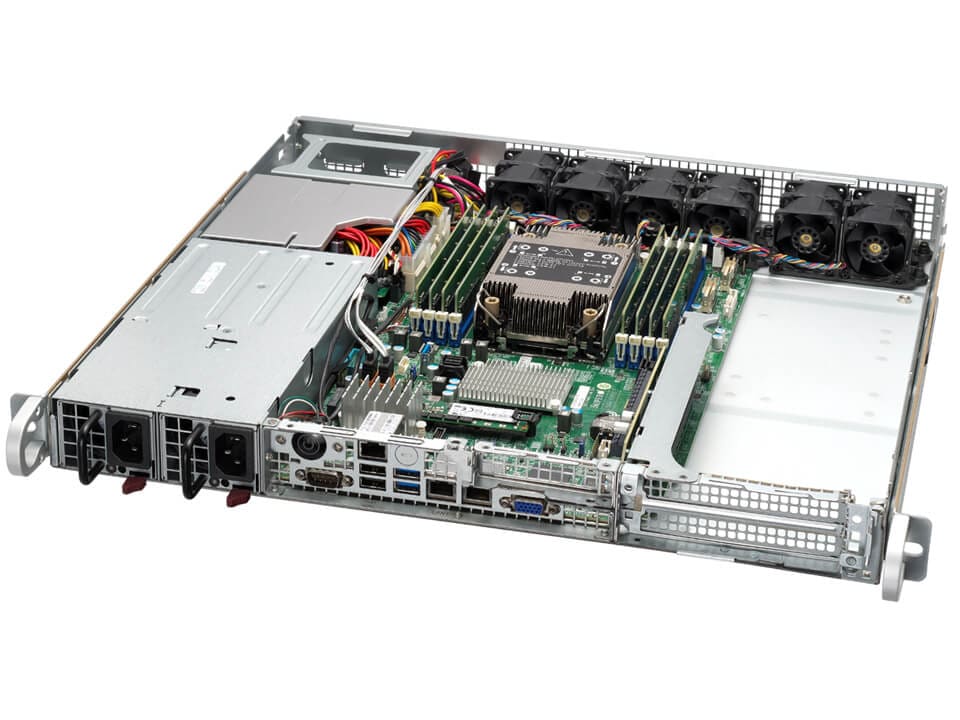

1U IoT SuperServer SYS-110P-FWTR (SYS-110P-FWTR)

SYS-110P-FWTR | 1U | SuperServer | Products | Supermicro - SYS-110P-FWTR - SS110P-FWTR - 1U - IoT - X12 - System

Loading price... (€1532.09)

Loading price...

Verzending binnen 14-21 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-110P-FWTR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Multi-Access Edge Computing
Flex-RAN, Open-RAN vBBU
Artificial Intelligence (AI) on Edge
DU of 5G Application
Satellite Communication

Key Features

Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
800W Redundant Power Supplies Level (94%+)

...

Product SKUs
SuperServer SYS-110P-FWTR

Motherboard
Super X12SPW-TF

Processor
CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 32C/64T; Up to 48MB Cache
Note	Supports 85W - 205W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2048GB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X550 View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
USB	2 USB 2.0 Type-A port(s) 2 Type-A port(s)
Video	1 VGA port(s)

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support, PEPI
