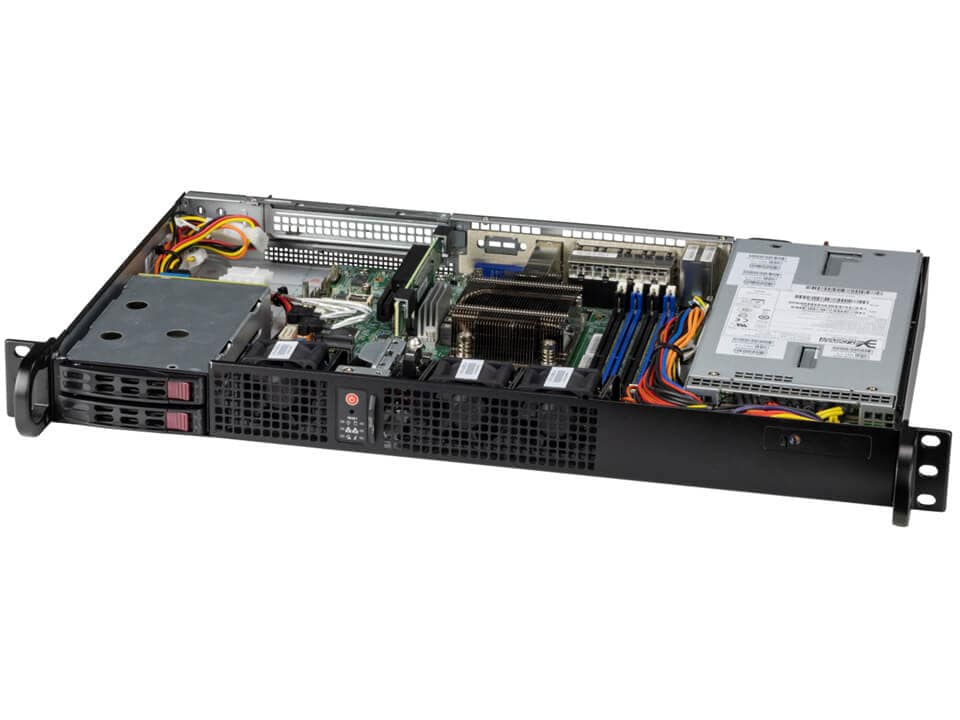

1U IoT SuperServer SYS-110A-16C-RN10SP (SYS-110A-16C-RN10SP)

SYS-110A-16C-RN10SP | 1U | SuperServer | Products | Supermicro - SYS-110A-16C-RN10SP - SS110A-16C-RN10SP - 1U - IoT - A3 - System

Loading price... (€1697.91)

Loading price...

Verzending binnen 10-15 werkdagen

Try before you buy

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-110A-16C-RN10SP

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

Key Applications

1U Short-Depth Edge Server
Network Appliance & Security
SD-WAN and vCPE / uCPE
Hyper Converged Infrastructure

Key Features

Intel® Atom® Snow Ridge P5342 16-Core with embedded QAT support
1x PCIe 3.0 x8 expansion for AOC
2 Hot-swap 2.5" SATA3 drive bays
3x 40x28mm 4-PIN PWM fans
Cost Effective 1U Short-Depth Chassis with Redundant 300 PSU
- M.2 selections (M.2 M-Key for SSD, B-Key for WAN or 4G-LTE module, Ekey for WiFi )
- TPM Onboard and header both, IPMI with OOB support

...

Get Pricing

Product SKUs
SuperServer SYS-110A-16C-RN10SP

Motherboard
Super A3SSV-16C-SPLN10F

Processor
CPU	Single FCBGA-2106 Intel® Atom® Snow Ridge P5342
Note	Supports up to 71W TDP CPUs (Air Cooled)

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 256GB 2667MT/s ECC DDR4 RDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps)
Chipset	Intel® P5342
Network Connectivity	4 RJ45 1GBASE-T with Intel® I350-AM4 4 RJ45 1GBASE-T with Marvell® 88E1543 2 SFP28 25GbE with Intel® P5000 SoC View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s) 8 RJ45 1 GbE LAN port(s) 2 RJ45 25 GbE LAN port(s)
USB	2 Type-A port(s)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB UEFI

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
FAN	Pulse Width Modulated (PWM) fan connectors Support 3-pin fans (w/o speed control) 3 fans with tachometer status monitoring, Status monitoring for speed control
Temperature	CPU thermal trip support Thermal Control for 3 Fan Connectors
