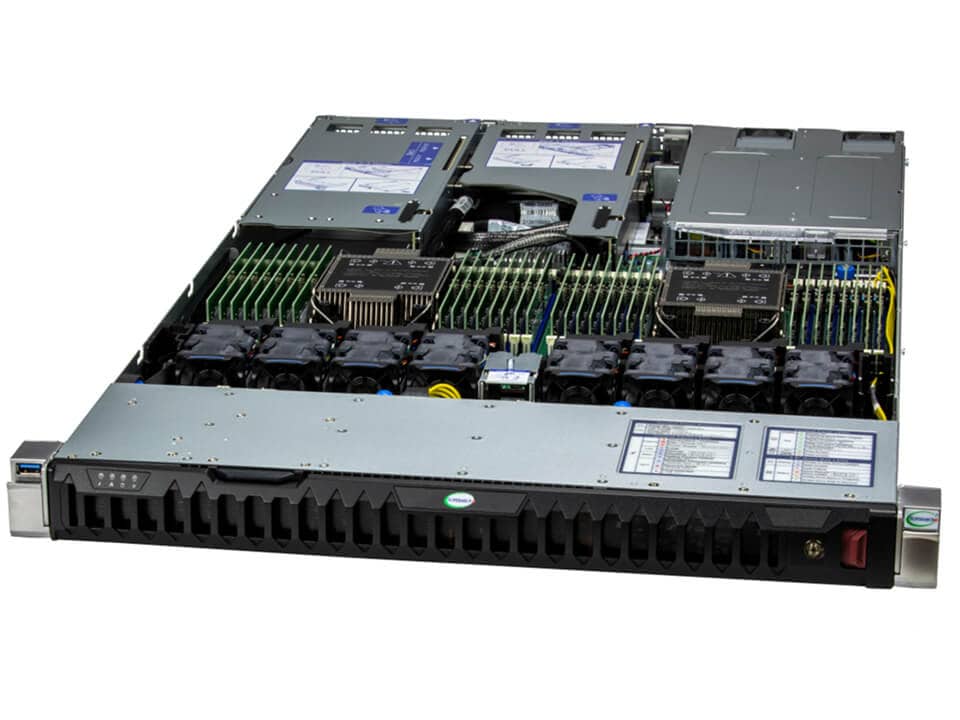

1U Hyper SuperServer SYS-121H-TNR (SYS-121H-TNR)

SYS-121H-TNR | 1U | SuperServer | Products | Supermicro - SYS-121H-TNR - SS121H-TNR - 1U - Hyper - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-121H-TNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server

Key Features

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
8 heavy duty hot-swap fans with optimal fan speed control

...

Buy Now

Product SKUs
SuperServer SYS-121H-TNR

Motherboard
Super X13DEM

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 1 double-width or 3 single-width GPU(s)
Supported GPU	NVIDIA PCIe: H100, RTX A5000, RTX A4000, L40S, L4 View GPU Options
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 2.0 port(s) (rear) 1 USB 3.0 port(s) (front)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 64MB SPI Flash

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
