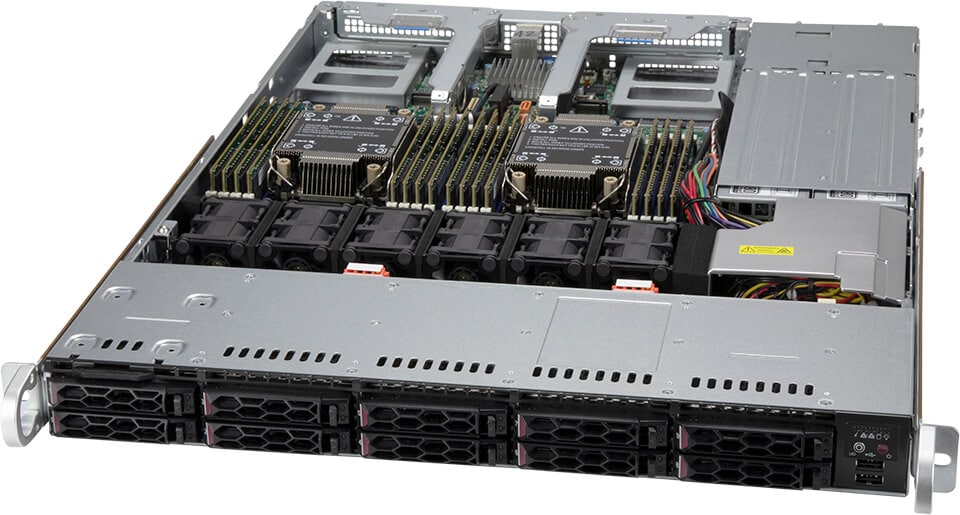

1U CloudDC SuperServer SYS-120C-TN10R (SYS-120C-TN10R)

SYS-120C-TN10R | 1U | SuperServer | Products | Supermicro - SYS-120C-TN10R - SS120C-TN10R - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Loading price... (€1692.68)

Loading price...

Verzending binnen 10-15 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Try before you buy

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-120C-TN10R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 019 62 42

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

Web Server, Firewall Application
Data Center Optimized, Value IaaS
Cloud Computing, Compact Server
DNS & Gateway Servers, Firewall Application
CDN, Edge Nodes

Key Features

Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Intel® C621A Chipset
16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
- 2 PCIe 4.0 x16 FHHL;
- 2 PCIe 3.0 x2 NVMe M.2
Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)

...

Get Pricing

Product SKUs
SuperServer SYS-120C-TN10R Standard version with PWS-860P-1R2 (Platinum Level)
SuperServer SYS-120C-TN10R-EU European version with PWS-861A-1R (Titanium Level)

Motherboard
Super X12DDW-A6

Processor
CPU	Dual Socket P4 (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 2 single-width GPU(s)
Supported GPU	NVIDIA PCIe: L4, A2 Intel PCIe: Intel Data Center GPU Flex 140 View GPU Options

System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series View Memory Options
Memory Voltage	1.2V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	Via Slim-AIOM View AIOM Options View AOC Options

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 USB 3.0 port(s) (rear) 2 USB 2.0 port(s) (front)
Video	1 VGA port(s)
Serial	1 COM port(s) (Rear)
DOM	1 SuperDOM (Disk on Module) port(s)
TPM	1 TPM header

System BIOS
BIOS Type	AMI 32MB SPI FLASH ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8 Phase-switching voltage regulator
